Ultrarapid fuses aR - gR

NR2A - Fuse DIN000 80mm aR 500VAC no ind 400A

    NR2A - Fuse DIN000 80mm aR 500VAC no ind 400A

    995.090.15.0.0
    FAULTRAP
    Available
    Class
    aR
    Rated current In (A)
    400
    Rated Voltage Un AC (V)
    500
    Rated break.capacity I1 AC (A)
    200000
    Voltage of total I2t test
    500
    Format
    Screw fixing
    Dimension
    000-80mm
    Pre-arcing I2t value (A2s)
    33600
    Total I2t value (A2s)
    145000
    Homologations
    IEC
    Power loss (W)
    93.5
    Time costant L/R (ms)
    2

    Product available on request


    Catalog
    Datasheet

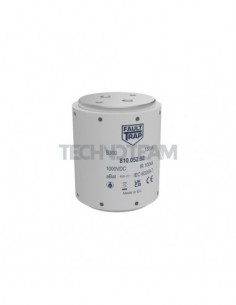

    B300 - Fuse 1000V DC aBat DC 2xM12 1400A

      B300 - Fuse 1000V DC aBat DC 2xM12 1400A

      979.833.74.0.0
      FAULTRAP
      Available
      Class
      aBat
      Rated current In (A)
      1400
      Voltage of total I2t test
      1000
      Format
      Screw fixing
      Dimension
      89x106,5mm
      Pre-arcing I2t value (A2s)
      731600
      Total I2t value (A2s)
      2195000
      Homologations
      IEC & UL
      Power loss (W)
      262
      Rated Voltage Un DC (V)
      1000
      Rated break.capacity I1 DC (A)
      100000
      Time costant L/R (ms)
      2

      Product available on request


      Catalog
      Datasheet

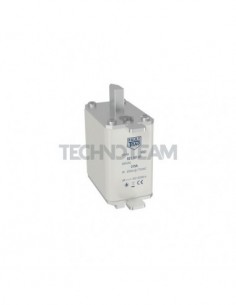

      NRAB - Fuse 690V AC aR NH00 with indicator 50A

        NRAB - Fuse 690V AC aR NH00 with indicator 50A

        977.886.78.0.0
        FAULTRAP
        Available
        Class
        aR
        Rated current In (A)
        50
        Rated Voltage Un AC (V)
        690
        Rated break.capacity I1 AC (A)
        200000
        Voltage of total I2t test
        770
        Format
        NH knife contact
        Dimension
        NH00
        Pre-arcing I2t value (A2s)
        330
        Total I2t value (A2s)
        1600
        Homologations
        IEC & UL
        Power loss (W)
        9
        Rated Voltage Un DC (V)
        700
        Rated break.capacity I1 DC (A)
        30000
        Time costant L/R (ms)
        2

        Product available on request


        Datasheet
        NRAB - Fuse 690V AC aR NH00 with indicator 32A

          NRAB - Fuse 690V AC aR NH00 with indicator 32A

          974.010.13.0.0
          FAULTRAP
          Available
          Class
          aR
          Rated current In (A)
          32
          Rated Voltage Un AC (V)
          690
          Rated break.capacity I1 AC (A)
          200000
          Voltage of total I2t test
          770
          Format
          NH knife contact
          Dimension
          NH00
          Pre-arcing I2t value (A2s)
          80
          Total I2t value (A2s)
          390
          Homologations
          IEC & UL
          Power loss (W)
          7
          Rated Voltage Un DC (V)
          700
          Rated break.capacity I1 DC (A)
          30000
          Time costant L/R (ms)
          2

          Product available on request


          Datasheet
          B300 - Fuse 1000V DC aBat DC 2xM12 1100A

            B300 - Fuse 1000V DC aBat DC 2xM12 1100A

            942.974.93.0.0
            FAULTRAP
            Available
            Class
            aBat
            Rated current In (A)
            1100
            Voltage of total I2t test
            1000
            Format
            Screw fixing
            Dimension
            89x106,5mm
            Pre-arcing I2t value (A2s)
            373200
            Total I2t value (A2s)
            1120000
            Homologations
            IEC & UL
            Power loss (W)
            210
            Rated Voltage Un DC (V)
            1000
            Rated break.capacity I1 DC (A)
            100000
            Time costant L/R (ms)
            2

            Product available on request


            Catalog
            Datasheet
            UR22 - Fuse 500V AC 22x58 cylindrical 125A

              UR22 - Fuse 500V AC 22x58 cylindrical 125A

              926.959.14.0.0
              FAULTRAP
              Available
              Class
              aR
              Rated current In (A)
              125
              Rated Voltage Un AC (V)
              500
              Rated break.capacity I1 AC (A)
              200000
              Voltage of total I2t test
              550
              Format
              Cylindrical
              Dimension
              22x58mm
              Pre-arcing I2t value (A2s)
              3100
              Total I2t value (A2s)
              15000
              Homologations
              IEC & UL
              Power loss (W)
              26

              Product available on request


              Catalog
              Datasheet
              10TD - Fuse 10x38 500VAC aM/aR 10A

                10TD - Fuse 10x38 500VAC aM/aR 10A

                922.606.35.0.0
                FAULTRAP
                Available
                Class
                aM-aR
                Rated current In (A)
                10
                Rated Voltage Un AC (V)
                500
                Rated break.capacity I1 AC (A)
                50000
                Voltage of total I2t test
                500
                Format
                Cylindrical
                Dimension
                10x38mm
                Pre-arcing I2t value (A2s)
                305
                Total I2t value (A2s)
                900
                Homologations
                IEC & UL

                Product available on request


                Catalog
                Datasheet
                NRAB - Fuse 690V AC aR NH00 with indicator 315A

                  NRAB - Fuse 690V AC aR NH00 with indicator 315A

                  921.181.61.0.0
                  FAULTRAP
                  Available
                  Class
                  aR
                  Rated current In (A)
                  315
                  Rated Voltage Un AC (V)
                  690
                  Rated break.capacity I1 AC (A)
                  200000
                  Voltage of total I2t test
                  770
                  Format
                  NH knife contact
                  Dimension
                  NH00
                  Pre-arcing I2t value (A2s)
                  16450
                  Total I2t value (A2s)
                  80300
                  Homologations
                  IEC & UL
                  Power loss (W)
                  70
                  Rated Voltage Un DC (V)
                  700
                  Rated break.capacity I1 DC (A)
                  30000
                  Time costant L/R (ms)
                  2

                  Product available on request


                  Datasheet
                  NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 200A

                    NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 200A

                    969.788.60.0.0
                    FAULTRAP
                    Available
                    Class
                    aR
                    Rated current In (A)
                    200
                    Rated Voltage Un AC (V)
                    690
                    Rated break.capacity I1 AC (A)
                    200000
                    Voltage of total I2t test
                    700
                    Format
                    Screw fixing
                    Dimension
                    000-80mm
                    Pre-arcing I2t value (A2s)
                    5370
                    Total I2t value (A2s)
                    19600
                    Homologations
                    IEC & UL
                    Power loss (W)
                    48.5
                    Rated Voltage Un DC (V)
                    700
                    Rated break.capacity I1 DC (A)
                    30000
                    Time costant L/R (ms)
                    2

                    Product available on request


                    Datasheet
                    NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 32A

                      NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 32A

                      953.799.47.0.0
                      FAULTRAP
                      Available
                      Class
                      aR
                      Rated current In (A)
                      32
                      Rated Voltage Un AC (V)
                      690
                      Rated break.capacity I1 AC (A)
                      200000
                      Voltage of total I2t test
                      700
                      Format
                      Screw fixing
                      Dimension
                      000-80mm
                      Pre-arcing I2t value (A2s)
                      80
                      Total I2t value (A2s)
                      300
                      Homologations
                      IEC & UL
                      Power loss (W)
                      7
                      Rated Voltage Un DC (V)
                      700
                      Rated break.capacity I1 DC (A)
                      30000
                      Time costant L/R (ms)
                      2

                      Product available on request


                      Datasheet
                      Fuse 1000VDC SQB1 Bolted blade aR/aBat 350A switch adap.

                        Fuse 1000VDC SQB1 Bolted blade aR/aBat 350A switch adap.

                        9054426.350.0
                        SIBA
                        Available
                        Class
                        aR-aBat
                        Rated current In (A)
                        350
                        Voltage of total I2t test
                        1000
                        Format
                        Screw fixing
                        Dimension
                        SQB1
                        Pre-arcing I2t value (A2s)
                        27000
                        Total I2t value (A2s)
                        130000
                        Homologations
                        IEC & UL
                        Power loss (W)
                        83
                        Rated Voltage Un DC (V)
                        1000
                        Rated break.capacity I1 DC (A)
                        200000
                        Time costant L/R (ms)
                        3

                        Product available on request


                        Catalog
                        Datasheet
                        Fuse 1000VDC SQB1 Bolted blade aR/aBat 160A switch adap.

                          Fuse 1000VDC SQB1 Bolted blade aR/aBat 160A switch adap.

                          9054426.160.0
                          SIBA
                          Available
                          Class
                          aR-aBat
                          Rated current In (A)
                          160
                          Voltage of total I2t test
                          1000
                          Format
                          Screw fixing
                          Dimension
                          SQB1
                          Pre-arcing I2t value (A2s)
                          3700
                          Total I2t value (A2s)
                          14500
                          Homologations
                          IEC & UL
                          Power loss (W)
                          39
                          Rated Voltage Un DC (V)
                          1000
                          Rated break.capacity I1 DC (A)
                          200000
                          Time costant L/R (ms)
                          3

                          Product available on request


                          Catalog
                          Datasheet
                          Fuse 1000VDC SQB1 Bolted blade aR/aBat 200A no ind

                            Fuse 1000VDC SQB1 Bolted blade aR/aBat 200A no ind

                            9054425.200.0
                            SIBA
                            Available
                            Class
                            aR-aBat
                            Rated current In (A)
                            200
                            Voltage of total I2t test
                            1000
                            Format
                            Screw fixing
                            Dimension
                            SQB1
                            Pre-arcing I2t value (A2s)
                            5600
                            Total I2t value (A2s)
                            21500
                            Homologations
                            IEC & UL
                            Power loss (W)
                            55
                            Rated Voltage Un DC (V)
                            1000
                            Rated break.capacity I1 DC (A)
                            200000
                            Time costant L/R (ms)
                            3

                            Product available on request


                            Catalog
                            Datasheet
                            Fuse 1000VDC SQB1 110mm aR/aBat 80A switch adap.

                              Fuse 1000VDC SQB1 110mm aR/aBat 80A switch adap.

                              9054026.80.0
                              SIBA
                              Available
                              Class
                              aR-aBat
                              Rated current In (A)
                              80
                              Voltage of total I2t test
                              1000
                              Format
                              Screw fixing
                              Dimension
                              SQB1
                              Pre-arcing I2t value (A2s)
                              620
                              Total I2t value (A2s)
                              3000
                              Homologations
                              IEC & UL
                              Power loss (W)
                              24
                              Rated Voltage Un DC (V)
                              1000
                              Rated break.capacity I1 DC (A)
                              200000
                              Time costant L/R (ms)
                              3

                              Product available on request


                              Catalog
                              Datasheet
                              Fuse 1000VDC SQB1 110mm aR/aBat 400A switch adap.

                                Fuse 1000VDC SQB1 110mm aR/aBat 400A switch adap.

                                9054026.400.0
                                SIBA
                                Available
                                Class
                                aR-aBat
                                Rated current In (A)
                                400
                                Voltage of total I2t test
                                1000
                                Format
                                Screw fixing
                                Dimension
                                SQB1
                                Pre-arcing I2t value (A2s)
                                39000
                                Total I2t value (A2s)
                                190000
                                Homologations
                                IEC & UL
                                Power loss (W)
                                85
                                Rated Voltage Un DC (V)
                                1000
                                Rated break.capacity I1 DC (A)
                                200000
                                Time costant L/R (ms)
                                3

                                Product available on request


                                Catalog
                                Datasheet
                                Fuse 1000VDC SQB1 110mm aR/aBat 350A switch adap.

                                  Fuse 1000VDC SQB1 110mm aR/aBat 350A switch adap.

                                  9054026.350.0
                                  SIBA
                                  Available
                                  Class
                                  aR-aBat
                                  Rated current In (A)
                                  350
                                  Voltage of total I2t test
                                  1000
                                  Format
                                  Screw fixing
                                  Dimension
                                  SQB1
                                  Pre-arcing I2t value (A2s)
                                  27000
                                  Total I2t value (A2s)
                                  130000
                                  Homologations
                                  IEC & UL
                                  Power loss (W)
                                  83
                                  Rated Voltage Un DC (V)
                                  1000
                                  Rated break.capacity I1 DC (A)
                                  200000
                                  Time costant L/R (ms)
                                  3

                                  Product available on request


                                  Catalog
                                  Datasheet
                                  Fuse 1000VDC SQB1 110mm aR/aBat 250A switch adap.

                                    Fuse 1000VDC SQB1 110mm aR/aBat 250A switch adap.

                                    9054026.250.0
                                    SIBA
                                    Available
                                    Class
                                    aR-aBat
                                    Rated current In (A)
                                    250
                                    Voltage of total I2t test
                                    1000
                                    Format
                                    Screw fixing
                                    Dimension
                                    SQB1
                                    Pre-arcing I2t value (A2s)
                                    9900
                                    Total I2t value (A2s)
                                    38000
                                    Homologations
                                    IEC & UL
                                    Power loss (W)
                                    74
                                    Rated Voltage Un DC (V)
                                    1000
                                    Rated break.capacity I1 DC (A)
                                    200000
                                    Time costant L/R (ms)
                                    3

                                    Product available on request


                                    Catalog
                                    Datasheet
                                    Fuse 1000VDC SQB1 110mm aR/aBat 200A switch adap.

                                      Fuse 1000VDC SQB1 110mm aR/aBat 200A switch adap.

                                      9054026.200.0
                                      SIBA
                                      Available
                                      Class
                                      aR-aBat
                                      Rated current In (A)
                                      200
                                      Voltage of total I2t test
                                      1000
                                      Format
                                      Screw fixing
                                      Dimension
                                      SQB1
                                      Pre-arcing I2t value (A2s)
                                      5600
                                      Total I2t value (A2s)
                                      21500
                                      Homologations
                                      IEC & UL
                                      Power loss (W)
                                      55
                                      Rated Voltage Un DC (V)
                                      1000
                                      Rated break.capacity I1 DC (A)
                                      200000
                                      Time costant L/R (ms)
                                      3

                                      Product available on request


                                      Catalog
                                      Datasheet
                                      Fuse 1000VDC SQB1 110mm aR/aBat 160A switch adap.

                                        Fuse 1000VDC SQB1 110mm aR/aBat 160A switch adap.

                                        9054026.160.0
                                        SIBA
                                        Available
                                        Class
                                        aR-aBat
                                        Rated current In (A)
                                        160
                                        Voltage of total I2t test
                                        1000
                                        Format
                                        Screw fixing
                                        Dimension
                                        SQB1
                                        Pre-arcing I2t value (A2s)
                                        3700
                                        Total I2t value (A2s)
                                        14500
                                        Homologations
                                        IEC & UL
                                        Power loss (W)
                                        39
                                        Rated Voltage Un DC (V)
                                        1000
                                        Rated break.capacity I1 DC (A)
                                        200000
                                        Time costant L/R (ms)
                                        3

                                        Product available on request


                                        Catalog
                                        Datasheet
                                        Fuse 1000VDC SQB1 110mm aR/aBat 100A switch adap.

                                          Fuse 1000VDC SQB1 110mm aR/aBat 100A switch adap.

                                          9054026.100.0
                                          SIBA
                                          Available
                                          Class
                                          aR-aBat
                                          Rated current In (A)
                                          100
                                          Voltage of total I2t test
                                          1000
                                          Format
                                          Screw fixing
                                          Dimension
                                          SQB1
                                          Pre-arcing I2t value (A2s)
                                          1300
                                          Total I2t value (A2s)
                                          6400
                                          Homologations
                                          IEC & UL
                                          Power loss (W)
                                          27
                                          Rated Voltage Un DC (V)
                                          1000
                                          Rated break.capacity I1 DC (A)
                                          200000
                                          Time costant L/R (ms)
                                          3

                                          Product available on request


                                          Catalog
                                          Datasheet
                                          Fuse 1000VDC SQB1 110mm aR/aBat SQB1 400A no ind

                                            Fuse 1000VDC SQB1 110mm aR/aBat SQB1 400A no ind

                                            9054025.400.0
                                            SIBA
                                            Available
                                            Class
                                            aR-aBat
                                            Rated current In (A)
                                            400
                                            Voltage of total I2t test
                                            1000
                                            Format
                                            Screw fixing
                                            Dimension
                                            SQB1
                                            Pre-arcing I2t value (A2s)
                                            39000
                                            Total I2t value (A2s)
                                            190000
                                            Homologations
                                            IEC & UL
                                            Power loss (W)
                                            85
                                            Rated Voltage Un DC (V)
                                            1000
                                            Rated break.capacity I1 DC (A)
                                            200000
                                            Time costant L/R (ms)
                                            3

                                            Product available on request


                                            Catalog
                                            Datasheet

                                            Filter by

                                            Manufacturer
                                            more... less
                                            Class
                                            more... less
                                            Rated Voltage Un AC (V)
                                            32 2500
                                            Rated Voltage Un DC (V)
                                            25 4200
                                            Rated current In (A)
                                            0 160000
                                            Format
                                            more... less
                                            Dimension
                                            Homologations
                                            more... less
                                            Pre-arcing I2t value (A2s)
                                            0 4865000
                                            Total I2t value (A2s)
                                            0 28640000
                                            Ultrarapid fuses aR - gR
                                            Product added to wishlist
                                            Product added to compare.
