List of products by brand FAULTRAP

V108 - Fuse 10x85 1500VDC gPV UL 25A

    V108 - Fuse 10x85 1500VDC gPV UL 25A

    984.545.26.0.0
    FAULTRAP
    Available
    Class
    gPV
    Rated current In (A)
    25
    Voltage of total I2t test
    1500
    Format
    Cylindrical
    Dimension
    10x85mm
    Pre-arcing I2t value (A2s)
    175.22
    Total I2t value (A2s)
    827
    Homologations
    IEC & UL
    Power loss (W)
    5.59
    Rated Voltage Un DC (V)
    1500
    Rated break.capacity I1 DC (A)
    20000

    Product available on request


    Datasheet

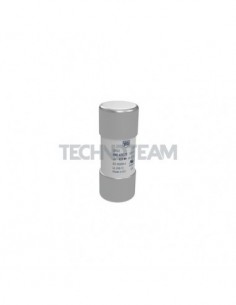

    UR22 - Fuse 500V AC 22x58 cylindrical 125A

      UR22 - Fuse 500V AC 22x58 cylindrical 125A

      926.959.14.0.0
      FAULTRAP
      Available
      Class
      aR
      Rated current In (A)
      125
      Rated Voltage Un AC (V)
      500
      Rated break.capacity I1 AC (A)
      200000
      Voltage of total I2t test
      550
      Format
      Cylindrical
      Dimension
      22x58mm
      Pre-arcing I2t value (A2s)
      3100
      Total I2t value (A2s)
      15000
      Homologations
      IEC & UL
      Power loss (W)
      26

      Product available on request


      Catalog
      Datasheet
      NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 32A

        NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 32A

        953.799.47.0.0
        FAULTRAP
        Available
        Class
        aR
        Rated current In (A)
        32
        Rated Voltage Un AC (V)
        690
        Rated break.capacity I1 AC (A)
        200000
        Voltage of total I2t test
        700
        Format
        Screw fixing
        Dimension
        000-80mm
        Pre-arcing I2t value (A2s)
        80
        Total I2t value (A2s)
        300
        Homologations
        IEC & UL
        Power loss (W)
        7
        Rated Voltage Un DC (V)
        700
        Rated break.capacity I1 DC (A)
        30000
        Time costant L/R (ms)
        2

        Product available on request


        Datasheet
        NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 200A

          NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 200A

          969.788.60.0.0
          FAULTRAP
          Available
          Class
          aR
          Rated current In (A)
          200
          Rated Voltage Un AC (V)
          690
          Rated break.capacity I1 AC (A)
          200000
          Voltage of total I2t test
          700
          Format
          Screw fixing
          Dimension
          000-80mm
          Pre-arcing I2t value (A2s)
          5370
          Total I2t value (A2s)
          19600
          Homologations
          IEC & UL
          Power loss (W)
          48.5
          Rated Voltage Un DC (V)
          700
          Rated break.capacity I1 DC (A)
          30000
          Time costant L/R (ms)
          2

          Product available on request


          Datasheet
          10TD - Fuse 10x38 500VAC aM/aR 10A

            10TD - Fuse 10x38 500VAC aM/aR 10A

            922.606.35.0.0
            FAULTRAP
            Available
            Class
            aM-aR
            Rated current In (A)
            10
            Rated Voltage Un AC (V)
            500
            Rated break.capacity I1 AC (A)
            50000
            Voltage of total I2t test
            500
            Format
            Cylindrical
            Dimension
            10x38mm
            Pre-arcing I2t value (A2s)
            305
            Total I2t value (A2s)
            900
            Homologations
            IEC & UL

            Product available on request


            Catalog
            Datasheet
            EV65.1000 - Fuse 1000VDC 22x65 cylindrical 75A

              EV65.1000 - Fuse 1000VDC 22x65 cylindrical 75A

              938.403.22.0.0
              FAULTRAP
              Available
              Class
              aR
              Rated current In (A)
              75
              Voltage of total I2t test
              1000
              Format
              Cylindrical
              Dimension
              22x65mm
              Pre-arcing I2t value (A2s)
              2480
              Total I2t value (A2s)
              7300
              Homologations
              UL
              Power loss (W)
              13.5
              Rated Voltage Un DC (V)
              1000
              Rated break.capacity I1 DC (A)
              25000
              Time costant L/R (ms)
              2.5

              Product available on request


              Datasheet
              B300 - Fuse 1000V DC aBat DC 2xM12 1100A

                B300 - Fuse 1000V DC aBat DC 2xM12 1100A

                942.974.93.0.0
                FAULTRAP
                Available
                Class
                aBat
                Rated current In (A)
                1100
                Voltage of total I2t test
                1000
                Format
                Screw fixing
                Dimension
                89x106,5mm
                Pre-arcing I2t value (A2s)
                373200
                Total I2t value (A2s)
                1120000
                Homologations
                IEC & UL
                Power loss (W)
                210
                Rated Voltage Un DC (V)
                1000
                Rated break.capacity I1 DC (A)
                100000
                Time costant L/R (ms)
                2

                Product available on request


                Catalog
                Datasheet
                EV65.1000 - Fuse 1000VDC 22x65 cylindrical 50A

                  EV65.1000 - Fuse 1000VDC 22x65 cylindrical 50A

                  968.836.79.0.0
                  FAULTRAP
                  Available
                  Class
                  aR
                  Rated current In (A)
                  50
                  Voltage of total I2t test
                  1000
                  Format
                  Cylindrical
                  Dimension
                  22x65mm
                  Pre-arcing I2t value (A2s)
                  685
                  Total I2t value (A2s)
                  2800
                  Homologations
                  UL
                  Power loss (W)
                  11
                  Rated Voltage Un DC (V)
                  1000
                  Rated break.capacity I1 DC (A)
                  25000
                  Time costant L/R (ms)
                  2.5

                  Product available on request


                  Datasheet
                  B300 - Fuse 1000V DC aBat DC 2xM12 1400A

                    B300 - Fuse 1000V DC aBat DC 2xM12 1400A

                    979.833.74.0.0
                    FAULTRAP
                    Available
                    Class
                    aBat
                    Rated current In (A)
                    1400
                    Voltage of total I2t test
                    1000
                    Format
                    Screw fixing
                    Dimension
                    89x106,5mm
                    Pre-arcing I2t value (A2s)
                    731600
                    Total I2t value (A2s)
                    2195000
                    Homologations
                    IEC & UL
                    Power loss (W)
                    262
                    Rated Voltage Un DC (V)
                    1000
                    Rated break.capacity I1 DC (A)
                    100000
                    Time costant L/R (ms)
                    2

                    Product available on request


                    Catalog
                    Datasheet
                    NRAB - Fuse 690V AC aR NH00 with indicator 315A

                      NRAB - Fuse 690V AC aR NH00 with indicator 315A

                      921.181.61.0.0
                      FAULTRAP
                      Available
                      Class
                      aR
                      Rated current In (A)
                      315
                      Rated Voltage Un AC (V)
                      690
                      Rated break.capacity I1 AC (A)
                      200000
                      Voltage of total I2t test
                      770
                      Format
                      NH knife contact
                      Dimension
                      NH00
                      Pre-arcing I2t value (A2s)
                      16450
                      Total I2t value (A2s)
                      80300
                      Homologations
                      IEC & UL
                      Power loss (W)
                      70
                      Rated Voltage Un DC (V)
                      700
                      Rated break.capacity I1 DC (A)
                      30000
                      Time costant L/R (ms)
                      2

                      Product available on request


                      Datasheet
                      NRAB - Fuse 690V AC aR NH00 with indicator 32A

                        NRAB - Fuse 690V AC aR NH00 with indicator 32A

                        974.010.13.0.0
                        FAULTRAP
                        Available
                        Class
                        aR
                        Rated current In (A)
                        32
                        Rated Voltage Un AC (V)
                        690
                        Rated break.capacity I1 AC (A)
                        200000
                        Voltage of total I2t test
                        770
                        Format
                        NH knife contact
                        Dimension
                        NH00
                        Pre-arcing I2t value (A2s)
                        80
                        Total I2t value (A2s)
                        390
                        Homologations
                        IEC & UL
                        Power loss (W)
                        7
                        Rated Voltage Un DC (V)
                        700
                        Rated break.capacity I1 DC (A)
                        30000
                        Time costant L/R (ms)
                        2

                        Product available on request


                        Datasheet
                        NRAB - Fuse 690V AC aR NH00 with indicator 50A

                          NRAB - Fuse 690V AC aR NH00 with indicator 50A

                          977.886.78.0.0
                          FAULTRAP
                          Available
                          Class
                          aR
                          Rated current In (A)
                          50
                          Rated Voltage Un AC (V)
                          690
                          Rated break.capacity I1 AC (A)
                          200000
                          Voltage of total I2t test
                          770
                          Format
                          NH knife contact
                          Dimension
                          NH00
                          Pre-arcing I2t value (A2s)
                          330
                          Total I2t value (A2s)
                          1600
                          Homologations
                          IEC & UL
                          Power loss (W)
                          9
                          Rated Voltage Un DC (V)
                          700
                          Rated break.capacity I1 DC (A)
                          30000
                          Time costant L/R (ms)
                          2

                          Product available on request


                          Datasheet
                          NR2A - Fuse DIN000 80mm aR 500VAC no ind 400A

                            NR2A - Fuse DIN000 80mm aR 500VAC no ind 400A

                            995.090.15.0.0
                            FAULTRAP
                            Available
                            Class
                            aR
                            Rated current In (A)
                            400
                            Rated Voltage Un AC (V)
                            500
                            Rated break.capacity I1 AC (A)
                            200000
                            Voltage of total I2t test
                            500
                            Format
                            Screw fixing
                            Dimension
                            000-80mm
                            Pre-arcing I2t value (A2s)
                            33600
                            Total I2t value (A2s)
                            145000
                            Homologations
                            IEC
                            Power loss (W)
                            93.5
                            Time costant L/R (ms)
                            2

                            Product available on request


                            Catalog
                            Datasheet
                            EV65.1500 - Fuse 1500VDC 22x65 cylindrical 75A

                              EV65.1500 - Fuse 1500VDC 22x65 cylindrical 75A

                              942.825.21.0.0
                              FAULTRAP
                              Available
                              Class
                              aR
                              Rated current In (A)
                              75
                              Voltage of total I2t test
                              1500
                              Format
                              Cylindrical
                              Dimension
                              22x65mm
                              Pre-arcing I2t value (A2s)
                              2480
                              Total I2t value (A2s)
                              12500
                              Homologations
                              UL
                              Power loss (W)
                              14.9
                              Rated Voltage Un DC (V)
                              1500
                              Rated break.capacity I1 DC (A)
                              25000
                              Time costant L/R (ms)
                              2.5

                              Product available on request


                              V108 - Fuse 10x85 1500VDC gPV UL 30A

                                V108 - Fuse 10x85 1500VDC gPV UL 30A

                                232.383.85.0.0
                                FAULTRAP
                                Available
                                Class
                                gPV
                                Rated current In (A)
                                30
                                Voltage of total I2t test
                                1500
                                Format
                                Cylindrical
                                Dimension
                                10x85mm
                                Pre-arcing I2t value (A2s)
                                265.42
                                Total I2t value (A2s)
                                980
                                Homologations
                                IEC & UL
                                Power loss (W)
                                7.12
                                Rated Voltage Un DC (V)
                                1500
                                Rated break.capacity I1 DC (A)
                                20000

                                Product available on request


                                Datasheet
                                V108 - Fuse 10x85 1500VDC gPV UL 16A

                                  V108 - Fuse 10x85 1500VDC gPV UL 16A

                                  328.230.50.0.0
                                  FAULTRAP
                                  Available
                                  Class
                                  gPV
                                  Rated current In (A)
                                  16
                                  Voltage of total I2t test
                                  1500
                                  Format
                                  Cylindrical
                                  Dimension
                                  10x85mm
                                  Pre-arcing I2t value (A2s)
                                  43.8
                                  Total I2t value (A2s)
                                  316
                                  Homologations
                                  IEC & UL
                                  Power loss (W)
                                  3.8
                                  Rated Voltage Un DC (V)
                                  1500
                                  Rated break.capacity I1 DC (A)
                                  20000

                                  Product available on request


                                  Datasheet
                                  V103 - Fuse 10x38 1000VDC gPV 4A

                                    V103 - Fuse 10x38 1000VDC gPV 4A

                                    238.967.87.0.0
                                    FAULTRAP
                                    Available
                                    Class
                                    gPV
                                    Rated current In (A)
                                    4
                                    Voltage of total I2t test
                                    1000
                                    Format
                                    Cylindrical
                                    Dimension
                                    10x38mm
                                    Pre-arcing I2t value (A2s)
                                    10.1
                                    Total I2t value (A2s)
                                    24
                                    Homologations
                                    IEC
                                    Power loss (W)
                                    1.69
                                    Rated Voltage Un DC (V)
                                    1000
                                    Rated break.capacity I1 DC (A)
                                    20000

                                    Product available on request


                                    Catalog
                                    Datasheet
                                    V108 - Fuse 10x85 1500VDC gPV UL 32A

                                      V108 - Fuse 10x85 1500VDC gPV UL 32A

                                      210.825.49.0.0
                                      FAULTRAP
                                      Available
                                      Class
                                      gPV
                                      Rated current In (A)
                                      32
                                      Voltage of total I2t test
                                      1500
                                      Format
                                      Cylindrical
                                      Dimension
                                      10x85mm
                                      Pre-arcing I2t value (A2s)
                                      299.64
                                      Total I2t value (A2s)
                                      4286
                                      Homologations
                                      IEC & UL
                                      Power loss (W)
                                      7.72
                                      Rated Voltage Un DC (V)
                                      1500
                                      Rated break.capacity I1 DC (A)
                                      20000

                                      Product available on request


                                      Datasheet
                                      V103 - Fuse 10x38 1000VDC gPV 10A

                                        V103 - Fuse 10x38 1000VDC gPV 10A

                                        620.307.82.0.0
                                        FAULTRAP
                                        Available
                                        Class
                                        gPV
                                        Rated current In (A)
                                        10
                                        Voltage of total I2t test
                                        1000
                                        Format
                                        Cylindrical
                                        Dimension
                                        10x38mm
                                        Pre-arcing I2t value (A2s)
                                        7.5
                                        Total I2t value (A2s)
                                        67
                                        Homologations
                                        IEC
                                        Power loss (W)
                                        2.27
                                        Rated Voltage Un DC (V)
                                        1000
                                        Rated break.capacity I1 DC (A)
                                        20000

                                        Product available on request


                                        Catalog
                                        Datasheet
