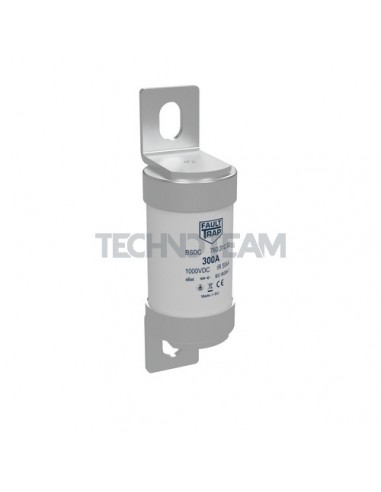

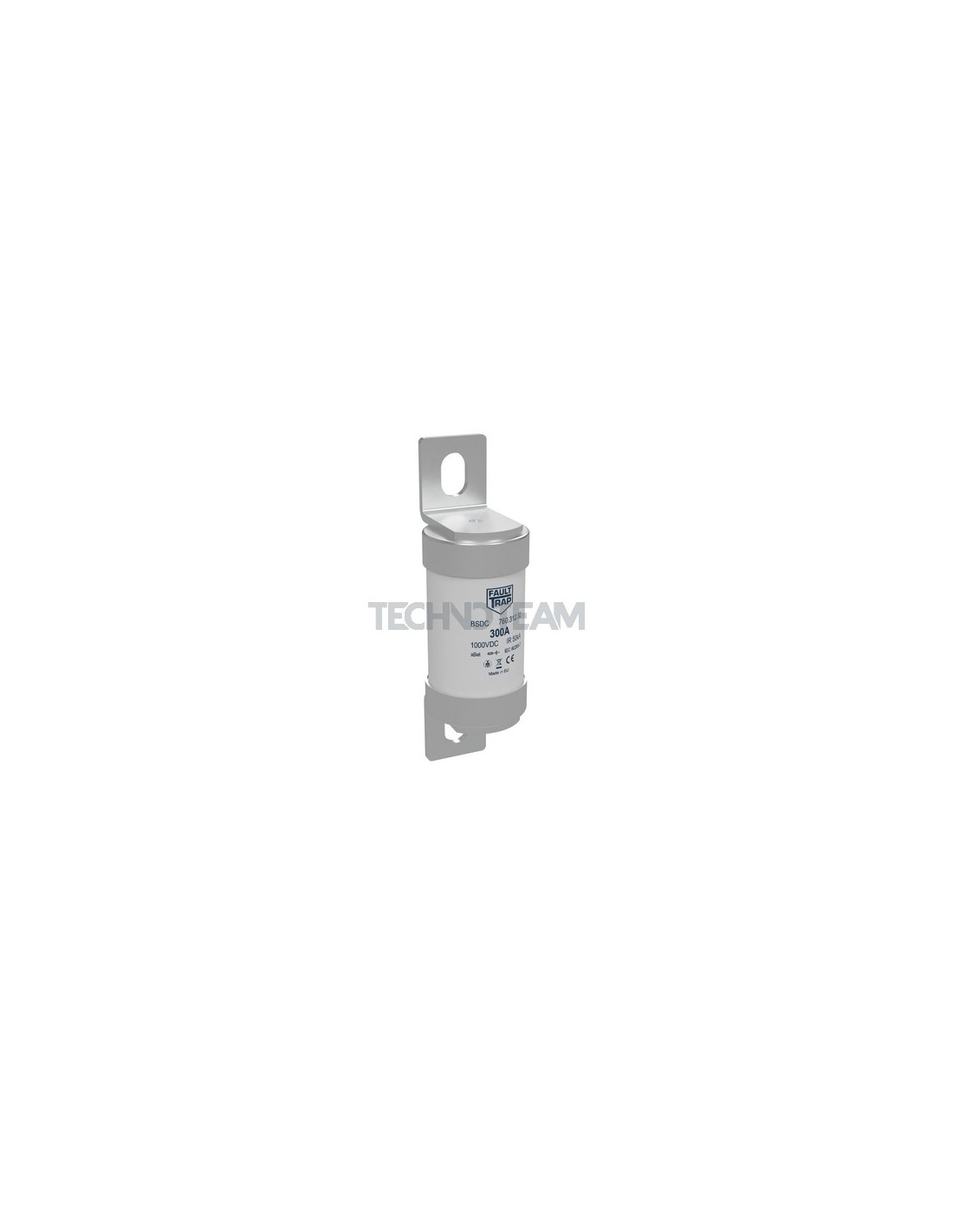

BSDC - Fuse 38x73mm 1000VDC BS aBat 250A

    BSDC - Fuse 38x73mm 1000VDC BS aBat 250A

    FAULTRAP
    631.812.67.0.0
    Product available on request

    Product Request:


    BSDC - Fuse 38x73mm 1000VDC BS aBat 250A

    BSDC - Fuse 38x73mm 1000VDC BS aBat 250A

    do not include special characters

    * Required fields



    Class
    aBat
    Rated current In (A)
    250
    Voltage of total I2t test
    1018
    Weight (g)
    225
    Format
    Screw fixing
    Dimension
    38x73mm
    Pre-arcing I2t value (A2s)
    21000
    Total I2t value (A2s)
    79800
    Homologations
    IEC
    Power loss (W)
    39
    Rated Voltage Un DC (V)
    1000
    Rated break.capacity I1 DC (A)
    50000
    Time costant L/R (ms)
    2
    Catalog name
    BSDC
