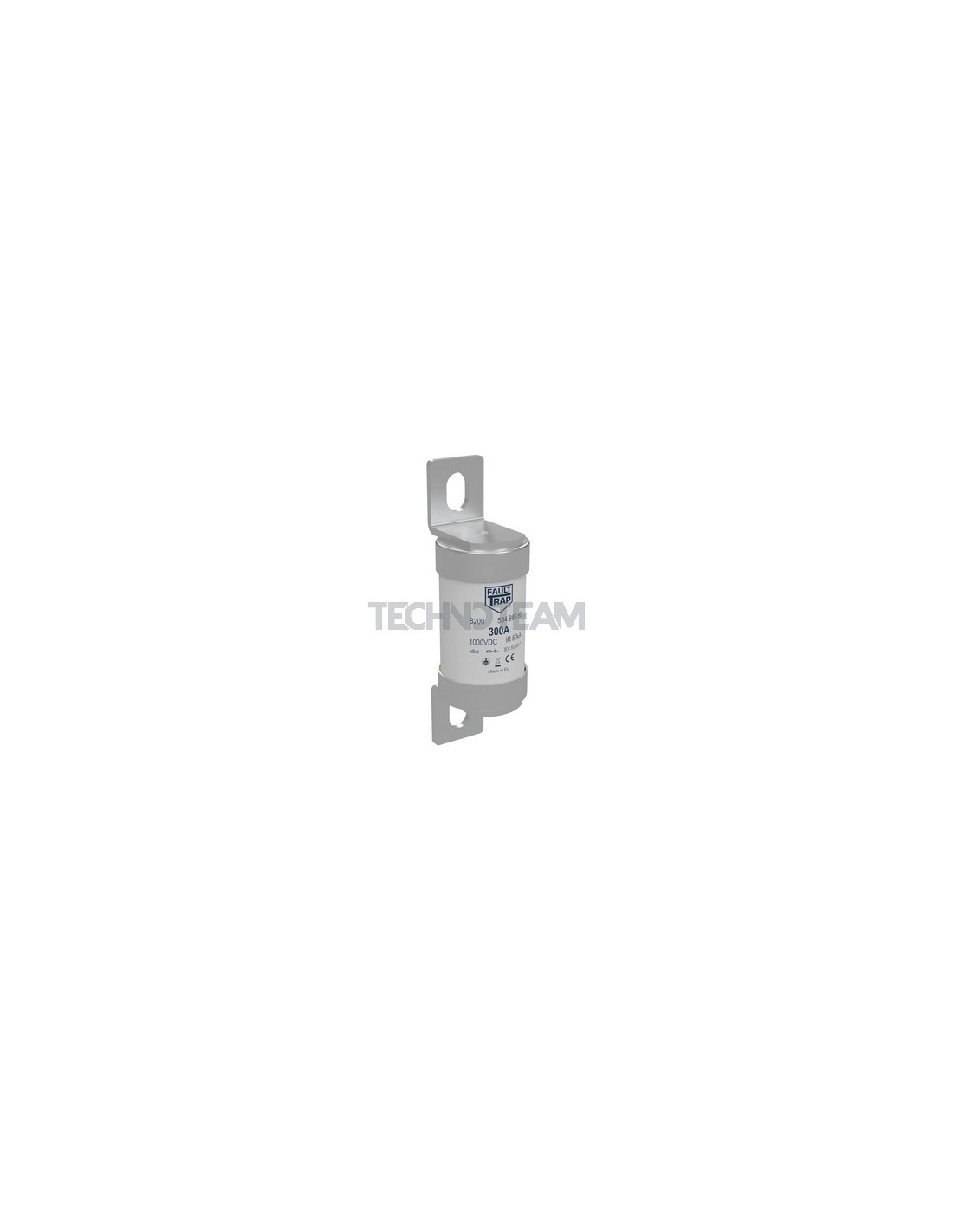

B200 - Fuse 38x73mm 1000VDC BS aBat 125A

    B200 - Fuse 38x73mm 1000VDC BS aBat 125A

    FAULTRAP
    698.861.52.0.0
    Product available on request

    Product Request:


    B200 - Fuse 38x73mm 1000VDC BS aBat 125A

    B200 - Fuse 38x73mm 1000VDC BS aBat 125A

    do not include special characters

    * Required fields



    Class
    aBat
    Rated current In (A)
    125
    Voltage of total I2t test
    1000
    Format
    Screw fixing
    Dimension
    38x73mm
    Pre-arcing I2t value (A2s)
    3400
    Total I2t value (A2s)
    13000
    Homologations
    IEC
    Power loss (W)
    21
    Rated Voltage Un DC (V)
    1000
    Rated break.capacity I1 DC (A)
    50000
    Time costant L/R (ms)
    2
    Catalog name
    B200
