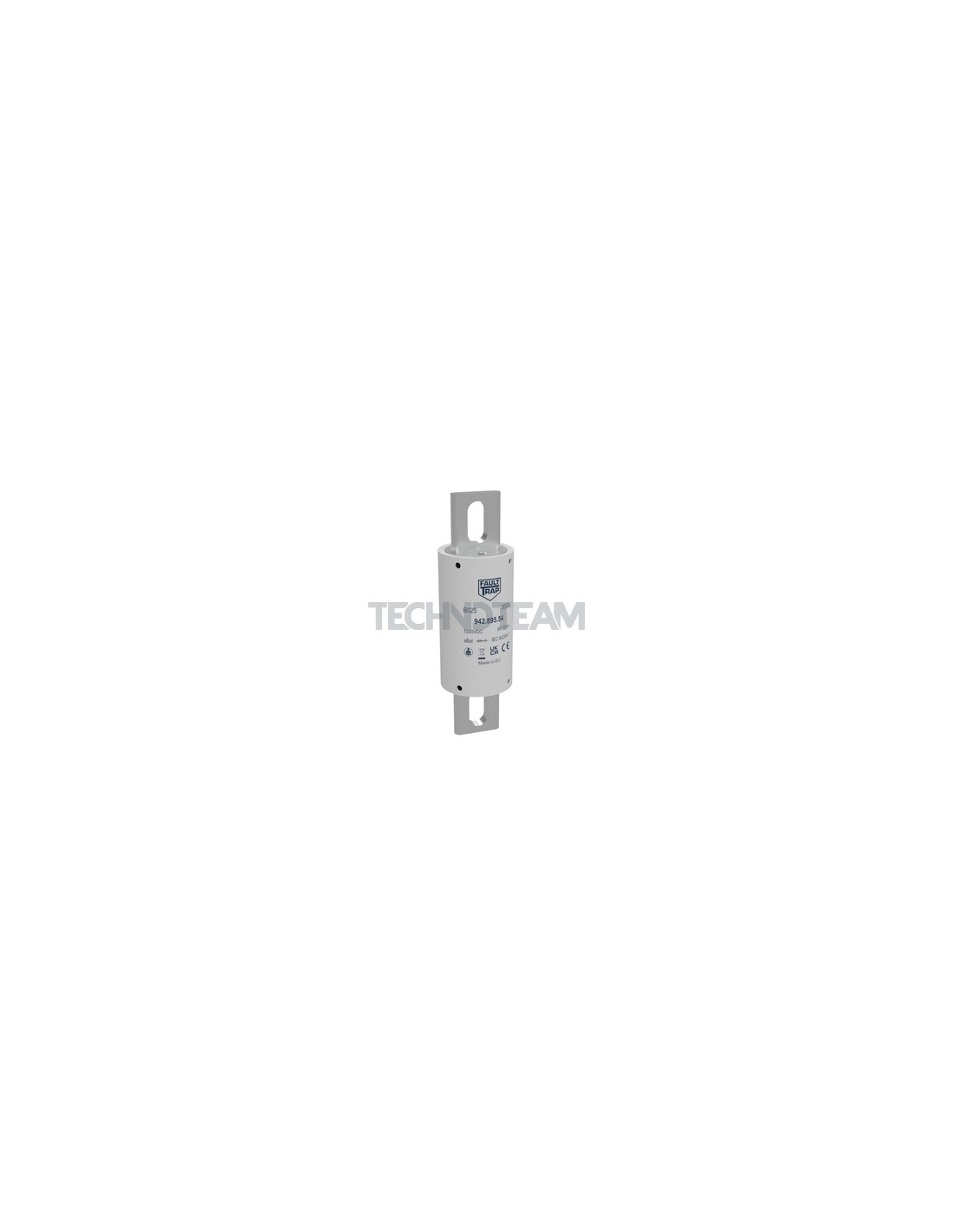

B025 - Fuse 1000VDC aBat 63A - 100,3mm - Tin Plated

    B025 - Fuse 1000VDC aBat 63A - 100,3mm - Tin Plated

    FAULTRAP
    121.227.80.0.0
    Product available on request

    Product Request:


    B025 - Fuse 1000VDC aBat 63A - 100,3mm - Tin Plated

    B025 - Fuse 1000VDC aBat 63A - 100,3mm - Tin Plated

    do not include special characters

    * Required fields



    Class
    aBat
    Rated current In (A)
    63
    Voltage of total I2t test
    1000
    Format
    Screw fixing
    Dimension
    38,10x72,20mm
    Pre-arcing I2t value (A2s)
    740
    Total I2t value (A2s)
    1700
    Homologations
    IEC
    Power loss (W)
    10
    Rated Voltage Un DC (V)
    1000
    Rated break.capacity I1 DC (A)
    100000
    Time costant L/R (ms)
    2
    Min breaking current I3(A)
    504
    Catalog name
    B025
