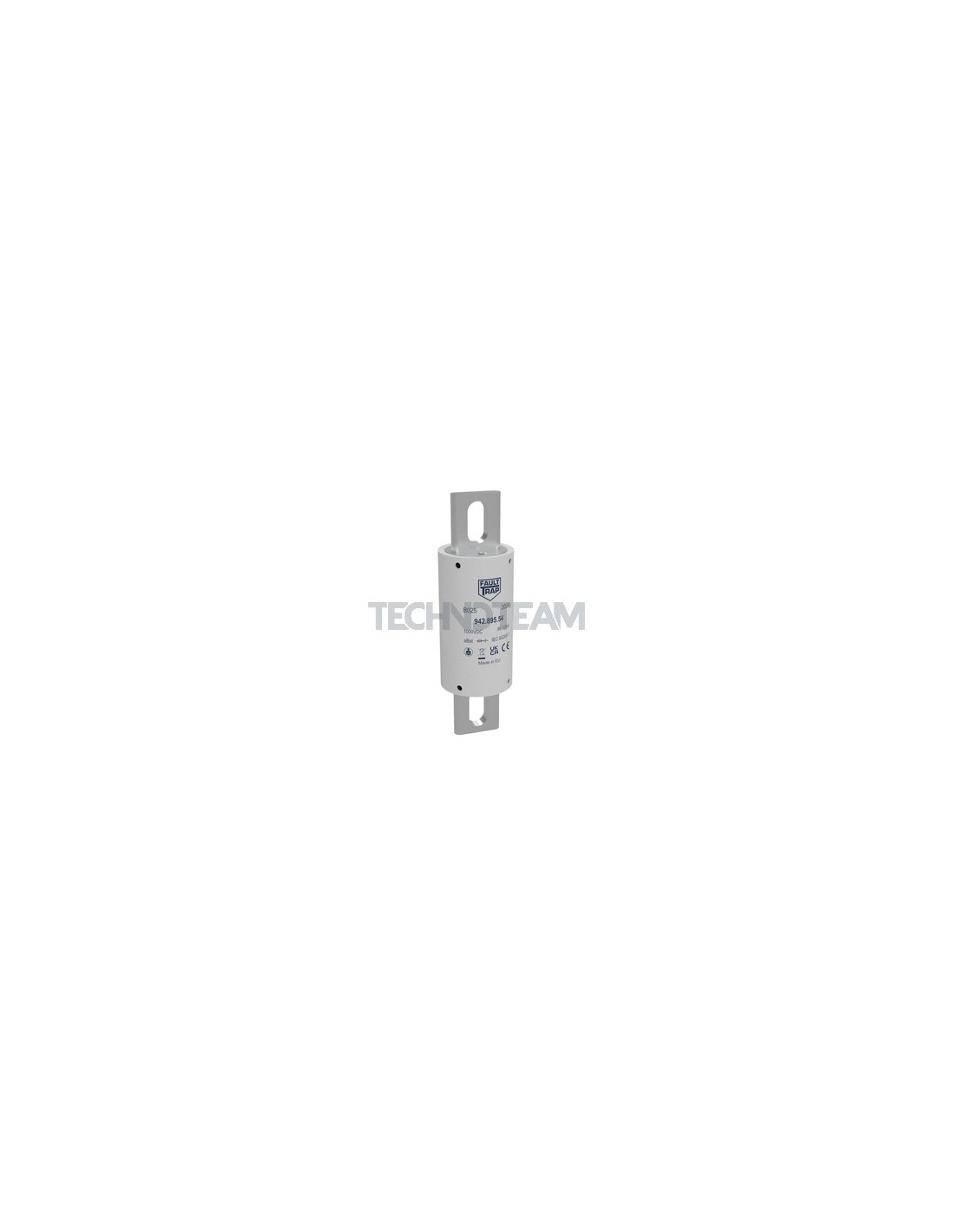

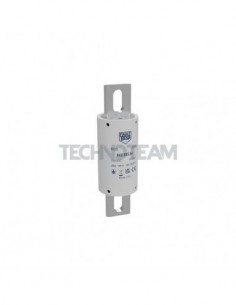

B025 - Fuse 1000VDC aBat 125A - 100,3mm - Tin Plated

    B025 - Fuse 1000VDC aBat 125A - 100,3mm - Tin Plated

    FAULTRAP
    499.212.47.0.0
    Product available on request

    Product Request:


    B025 - Fuse 1000VDC aBat 125A - 100,3mm - Tin Plated

    B025 - Fuse 1000VDC aBat 125A - 100,3mm - Tin Plated

    do not include special characters

    * Required fields



    Class
    aBat
    Rated current In (A)
    125
    Voltage of total I2t test
    1000
    Format
    Screw fixing
    Dimension
    38,10x72,20mm
    Pre-arcing I2t value (A2s)
    3500
    Total I2t value (A2s)
    8000
    Homologations
    IEC
    Power loss (W)
    19
    Rated Voltage Un DC (V)
    1000
    Rated break.capacity I1 DC (A)
    100000
    Time costant L/R (ms)
    2
    Min breaking current I3(A)
    1000
    Catalog name
    B025
