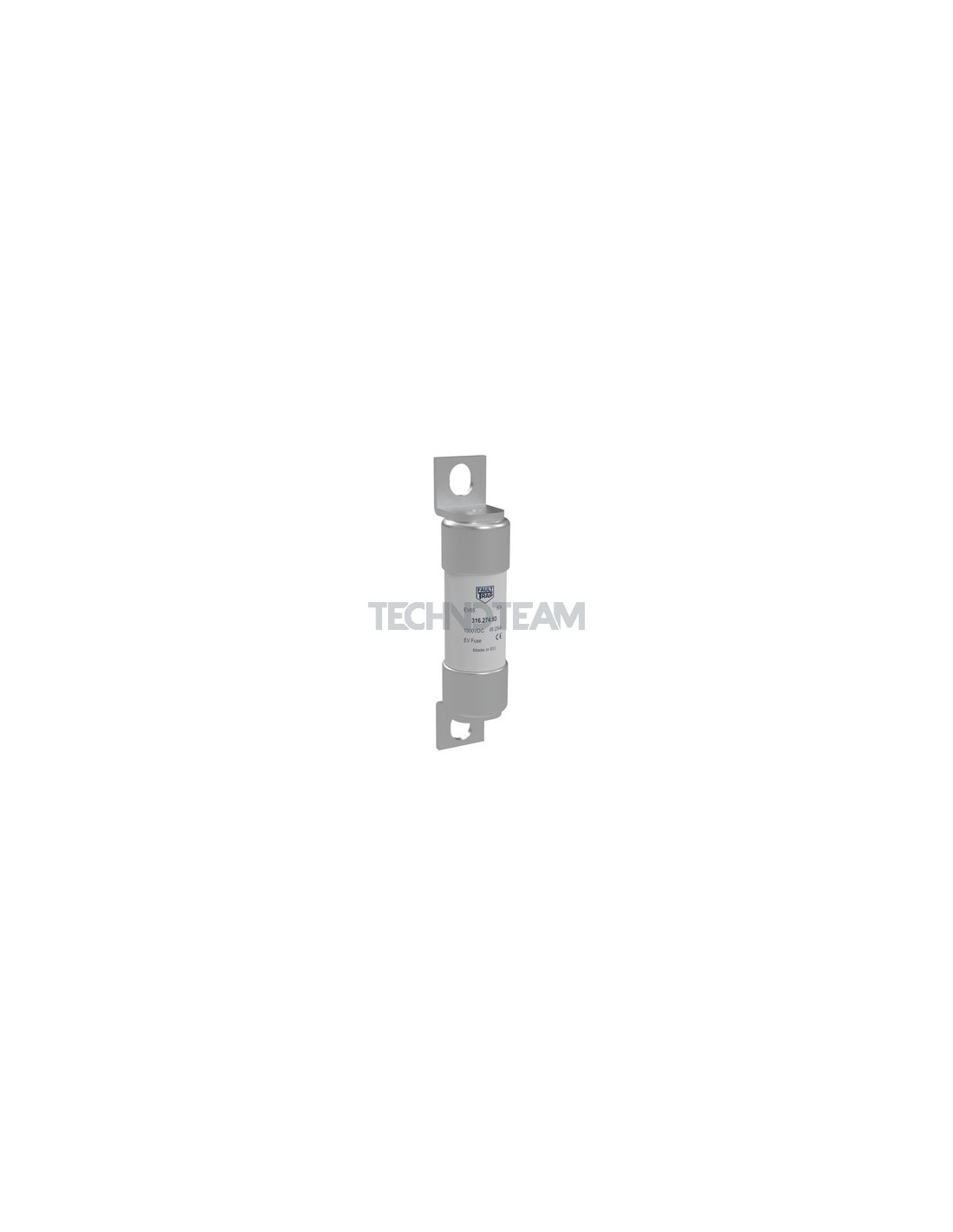

EV65.1000 - Fuse 1000VDC 22x65 fixing 87mm 70A

    EV65.1000 - Fuse 1000VDC 22x65 fixing 87mm 70A

    FAULTRAP
    784.537.01.0.0
    Product available on request

    Product Request:


    EV65.1000 - Fuse 1000VDC 22x65 fixing 87mm 70A

    EV65.1000 - Fuse 1000VDC 22x65 fixing 87mm 70A

    do not include special characters

    * Required fields



    Class
    aR
    Rated current In (A)
    70
    Voltage of total I2t test
    1000
    Format
    Screw fixing
    Dimension
    22x65mm
    Pre-arcing I2t value (A2s)
    2010
    Total I2t value (A2s)
    6050
    Homologations
    UL
    Power loss (W)
    13
    Rated Voltage Un DC (V)
    1000
    Rated break.capacity I1 DC (A)
    25000
    Time costant L/R (ms)
    2.5
    Catalog name
    EV65
