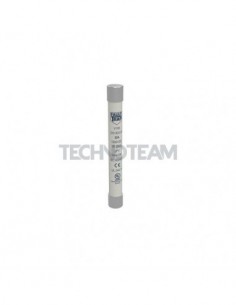

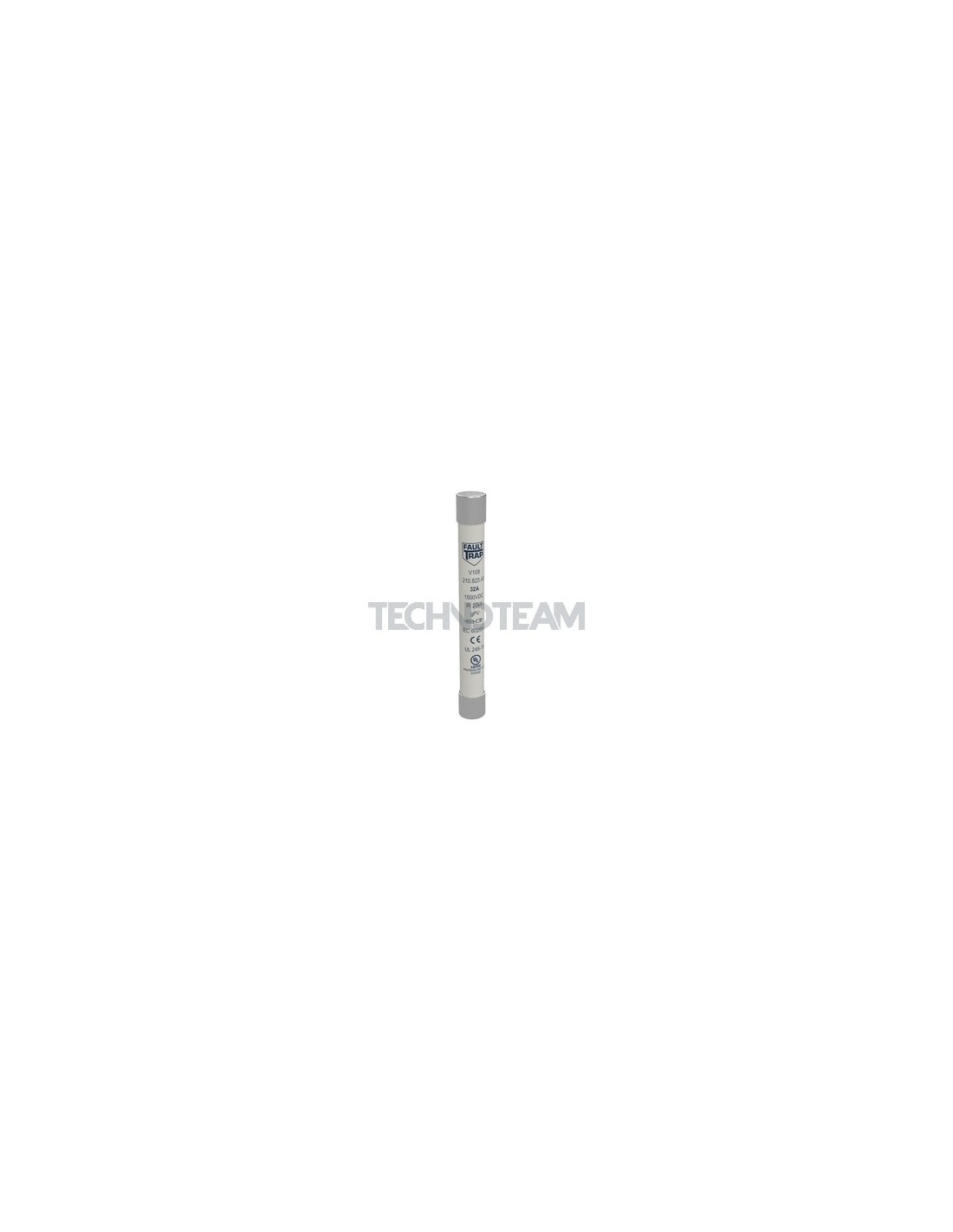

V108 - Fuse 10x85 1500VDC gPV UL 10A

    V108 - Fuse 10x85 1500VDC gPV UL 10A

    FAULTRAP
    685.060.16.0.0
    Product available on request

    Product Request:

    V108 - Fuse 10x85 1500VDC gPV UL 10A

    V108 - Fuse 10x85 1500VDC gPV UL 10A

    do not include special characters

    * Required fields



    This product is only sold in boxes of 12 pcs

    This product has a minimum quantity of 12 and sold by 12

    Download

    Datasheet
    Class
    gPV
    Rated current In (A)
    10
    Voltage of total I2t test
    1500
    Weight (g)
    12
    Format
    Cylindrical
    Dimension
    10x85mm
    Pre-arcing I2t value (A2s)
    12.7
    Total I2t value (A2s)
    102
    Homologations
    IEC & UL
    Power loss (W)
    2.99
    Rated Voltage Un DC (V)
    1500
    Rated break.capacity I1 DC (A)
    20000
    Catalog name
    V108

    Accessories

    ZRDU - Fuse holder 10x85 1500VDC IEC/UL 1P
      Available
      for Cylindrical fuses

      ZRDU - Fuse holder 10x85 1500VDC IEC/UL 1P

      463.991.81.0.0
      Rated current In (A)
      32
      Rated Voltage Un AC (V)
      1000
      Homologations
      IEC & UL
      Fuses format
      Cylindrical
      Fuses dimension
      10/14x85mm 10x85mm
      Rated Voltage Un DC (V)
      1500
      Number of phase
      1
      Max power dissipation (W)
      8,5
      $13.07
