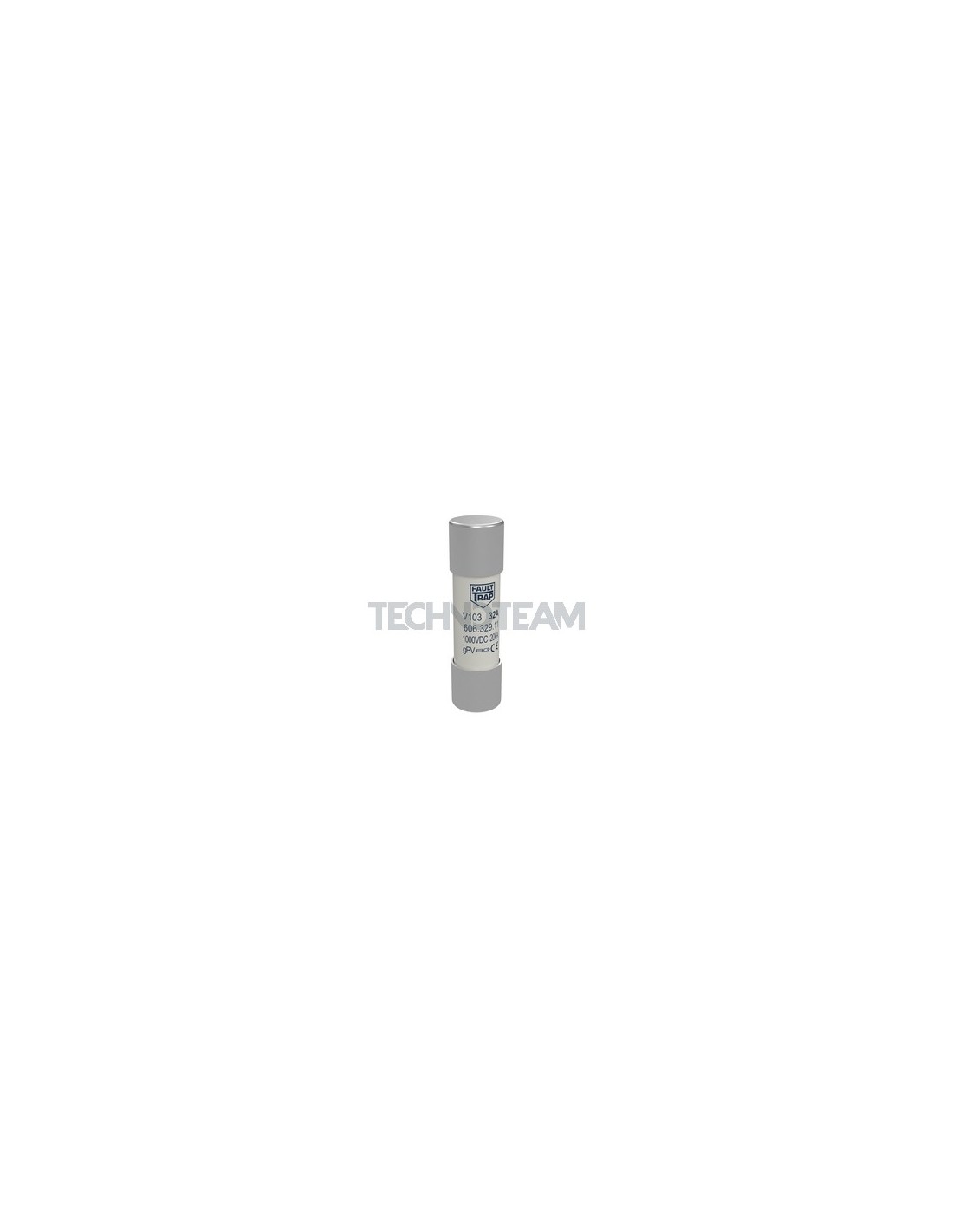

V103 - Fuse 10x38 1000VDC gPV 20A

    V103 - Fuse 10x38 1000VDC gPV 20A

    FAULTRAP
    442.488.31.0.0
    Product available on request

    Product Request:

    V103 - Fuse 10x38 1000VDC gPV 20A

    V103 - Fuse 10x38 1000VDC gPV 20A

    do not include special characters

    * Required fields



    This product is only sold in boxes of 20 pcs

    This product has a minimum quantity of 20 and sold by 20

    Download

    Catalog Datasheet
    Class
    gPV
    Rated current In (A)
    20
    Voltage of total I2t test
    1000
    Format
    Cylindrical
    Dimension
    10x38mm
    Pre-arcing I2t value (A2s)
    35.5
    Total I2t value (A2s)
    330
    Homologations
    IEC
    Power loss (W)
    2.79
    Rated Voltage Un DC (V)
    1000
    Rated break.capacity I1 DC (A)
    20000
    Catalog name
    V103

    Accessories

    Fuse holder 10x38 1000VDC 1pole UL with light (PMX)
      Available
      for Cylindrical fuses

      Fuse holder 10x38 1000VDC 1pole UL with light (PMX)

      485152.0.0
      Rated current In (A)
      32
      Rated Voltage Un AC (V)
      690
      Homologations
      IEC & UL
      Fuses format
      Cylindrical
      Fuses dimension
      10x38mm
      Rated Voltage Un DC (V)
      1000
      Number of phase
      1
      Max power dissipation (W)
      4
      $8.38
      Fuse holder 10x38 1000VDC 2poles with light indicator
        Available
        for Cylindrical fuses

        Fuse holder 10x38 1000VDC 2poles with light indicator

        5106305.2LDC.0
        Rated current In (A)
        30
        Rated Voltage Un AC (V)
        690
        Homologations
        IEC & UL
        Fuses format
        Cylindrical
        Fuses dimension
        10x38mm
        Rated Voltage Un DC (V)
        1000
        Number of phase
        2
        Max power dissipation (W)
        4

        Product available on request

        Fuse holder 10x38 1000VDC 1pole
          Available
          for Cylindrical fuses

          Fuse holder 10x38 1000VDC 1pole

          5106305.1DC.0
          Rated current In (A)
          30
          Rated Voltage Un AC (V)
          690
          Homologations
          IEC & UL
          Fuses format
          Cylindrical
          Fuses dimension
          10x38mm
          Rated Voltage Un DC (V)
          1000
          Number of phase
          1
          Max power dissipation (W)
          4
          $5.17
          Fuse holder 10x38 1000VDC 1pole UL4248-18 (PMX)
            Available
            for Cylindrical fuses

            Fuse holder 10x38 1000VDC 1pole UL4248-18 (PMX)

            485150.0.0
            Rated current In (A)
            32
            Rated Voltage Un AC (V)
            690
            Homologations
            IEC & UL
            Fuses format
            Cylindrical
            Fuses dimension
            10x38mm
            Rated Voltage Un DC (V)
            1000
            Number of phase
            1
            Max power dissipation (W)
            4
            $5.35
            Fuse holder 10x38 1000VDC 2poles
              Available
              for Cylindrical fuses

              Fuse holder 10x38 1000VDC 2poles

              5106305.2DC.0
              Rated current In (A)
              30
              Rated Voltage Un AC (V)
              690
              Homologations
              IEC & UL
              Fuses format
              Cylindrical
              Fuses dimension
              10x38mm
              Rated Voltage Un DC (V)
              1000
              Number of phase
              2
              Max power dissipation (W)
              4
              $10.25
              Fuse holder 10x38 1000VDC 2poles UL with light (PMX)
                Available
                for Cylindrical fuses

                Fuse holder 10x38 1000VDC 2poles UL with light (PMX)

                485153.0.0
                Rated current In (A)
                32
                Rated Voltage Un AC (V)
                690
                Homologations
                IEC & UL
                Fuses format
                Cylindrical
                Fuses dimension
                10x38mm
                Rated Voltage Un DC (V)
                1000
                Number of phase
                2
                Max power dissipation (W)
                4

                Product available on request

                Fuse holder 10x38 1000VDC 2poles UL4248-18 (PMX)
                  Available
                  for Cylindrical fuses

                  Fuse holder 10x38 1000VDC 2poles UL4248-18 (PMX)

                  485151.0.0
                  Rated current In (A)
                  32
                  Rated Voltage Un AC (V)
                  690
                  Homologations
                  IEC & UL
                  Fuses format
                  Cylindrical
                  Fuses dimension
                  10x38mm
                  Rated Voltage Un DC (V)
                  1000
                  Number of phase
                  2
                  Max power dissipation (W)
                  4
                  $10.39
                  Fuse holder 10x38 1000VDC 1pole with light indicator
                    Available
                    for Cylindrical fuses

                    Fuse holder 10x38 1000VDC 1pole with light indicator

                    5106305.1LDC.0
                    Rated current In (A)
                    30
                    Rated Voltage Un AC (V)
                    690
                    Homologations
                    IEC & UL
                    Fuses format
                    Cylindrical
                    Fuses dimension
                    10x38mm
                    Rated Voltage Un DC (V)
                    1000
                    Number of phase
                    1
                    Max power dissipation (W)
                    4
                    $8.28
                    Clip diameter 10mm with holes
                      Available
                      for Cylindrical fuses

                      Clip diameter 10mm with holes

                      5806317.0.0
                      Homologations
                      IEC & UL
                      Fuses format
                      Cylindrical
                      Inside diameter (mm)
                      10

                      Product available on request

                      ZVJM - Fuse holder 10x38 690VAC-1000VDC 1P
                        Available
                        for Cylindrical fuses

                        ZVJM - Fuse holder 10x38 690VAC-1000VDC 1P

                        832.456.76.0.0
                        Rated current In (A)
                        32
                        Rated Voltage Un AC (V)
                        690
                        Homologations
                        IEC
                        Fuses format
                        Cylindrical
                        Fuses dimension
                        10x38mm
                        Rated Voltage Un DC (V)
                        1000
                        Number of phase
                        1
                        Max power dissipation (W)
                        4
                        $3.18
                        Fuse holder modular midget 600V 1P 30A
                          Available
                          for American style

                          Fuse holder modular midget 600V 1P 30A

                          6SM30A1C.0.0
                          Rated current In (A)
                          30
                          Rated Voltage Un AC (V)
                          600
                          Homologations
                          UL
                          Fuses format
                          Cylindrical
                          Number of phase
                          1

                          Product available on request

                          Fuse holder modular midget 600V 2P 30A
                            Available
                            for American style

                            Fuse holder modular midget 600V 2P 30A

                            6SM30A2C.0.0
                            Rated current In (A)
                            30
                            Rated Voltage Un AC (V)
                            600
                            Homologations
                            UL
                            Fuses format
                            Cylindrical
                            Number of phase
                            2

                            Product available on request

                            Fuse holder modular midget 600V 3P 30A
                              Available
                              for American style

                              Fuse holder modular midget 600V 3P 30A

                              6SM30A3C.0.0
                              Rated current In (A)
                              30
                              Rated Voltage Un AC (V)
                              600
                              Homologations
                              UL
                              Fuses format
                              Cylindrical
                              Number of phase
                              3

                              Product available on request
