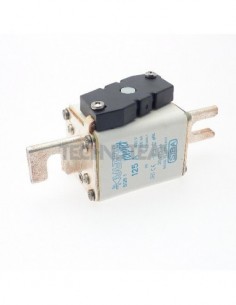

Fuse SQB1 110mmgRL/gS 690VAC/500VDC lateral switch adap 200A

    Fuse SQB1 110mmgRL/gS 690VAC/500VDC lateral switch adap 200A

    SIBA
    2027134.200.0
    Product available on request

    Product Request:

    Fuse SQB1 110mmgRL/gS 690VAC/500VDC lateral switch adap 200A

    Fuse SQB1 110mmgRL/gS 690VAC/500VDC lateral switch adap 200A

    do not include special characters

    * Required fields



    This product is only sold in boxes of 3 pcs

    This product has a minimum quantity of 3 and sold by 3

    Download

    Catalog Datasheet
    Class
    gRL/gS
    Rated current In (A)
    200
    Rated Voltage Un AC (V)
    690
    Rated break.capacity I1 AC (A)
    200000
    Voltage of total I2t test
    690
    Weight (g)
    623
    Format
    Screw fixing
    Dimension
    SQB1-110mm
    Pre-arcing I2t value (A2s)
    15000
    Total I2t value (A2s)
    95000
    Homologations
    IEC
    Power loss (W)
    27
    Rated Voltage Un DC (V)
    500
    Rated break.capacity I1 DC (A)
    32000
    Time costant L/R (ms)
    15

    Alternatives

    Fuse SQB1 110mm gRL/gS 690VAC/550VDC top switch adapter 200A
      Available
      gRL/gS fuses

      Fuse SQB1 110mm gRL/gS 690VAC/550VDC top switch adapter 200A

      SIBA SIBA
      2027034.200.0
      Class
      gRL/gS
      Rated current In (A)
      200
      Rated Voltage Un AC (V)
      690
      Rated break.capacity I1 AC (A)
      200000
      Voltage of total I2t test
      690
      Format
      Screw fixing
      Dimension
      SQB1-110mm
      Pre-arcing I2t value (A2s)
      15000
      Total I2t value (A2s)
      95000
      Homologations
      IEC
      Power loss (W)
      27
      Rated Voltage Un DC (V)
      500
      Rated break.capacity I1 DC (A)
      32000
      Time costant L/R (ms)
      12

      Product available on request

      Fuse SQB1 110mm gRL/gS 690VAC/500VDC with indicator 200A
        Available
        gRL/gS fuses

        Fuse SQB1 110mm gRL/gS 690VAC/500VDC with indicator 200A

        SIBA SIBA
        2026934.200.0
        Class
        gRL/gS
        Rated current In (A)
        200
        Rated Voltage Un AC (V)
        690
        Rated break.capacity I1 AC (A)
        200000
        Voltage of total I2t test
        690
        Format
        Screw fixing
        Dimension
        SQB1-110mm
        Pre-arcing I2t value (A2s)
        30000
        Total I2t value (A2s)
        190000
        Homologations
        IEC
        Power loss (W)
        33
        Rated Voltage Un DC (V)
        500
        Rated break.capacity I1 DC (A)
        32000
        Time costant L/R (ms)
        12

        Product available on request

        Accessories

        Fuse holder for SQB fuses size1-2-3 110mm 630A 1400V
          Available
          for Bolted fuses

          Fuse holder for SQB fuses size1-2-3 110mm 630A 1400V

          2132301.0.0
          Rated current In (A)
          630
          Rated Voltage Un AC (V)
          1400
          Homologations
          IEC & UL
          Fuses format
          Screw fixing
          Fuses dimension
          SQB1 SQB2 SQB3
          Number of phase
          1
          Distance (mm)
          110
          Max power dissipation (W)
          60
          $127.57
