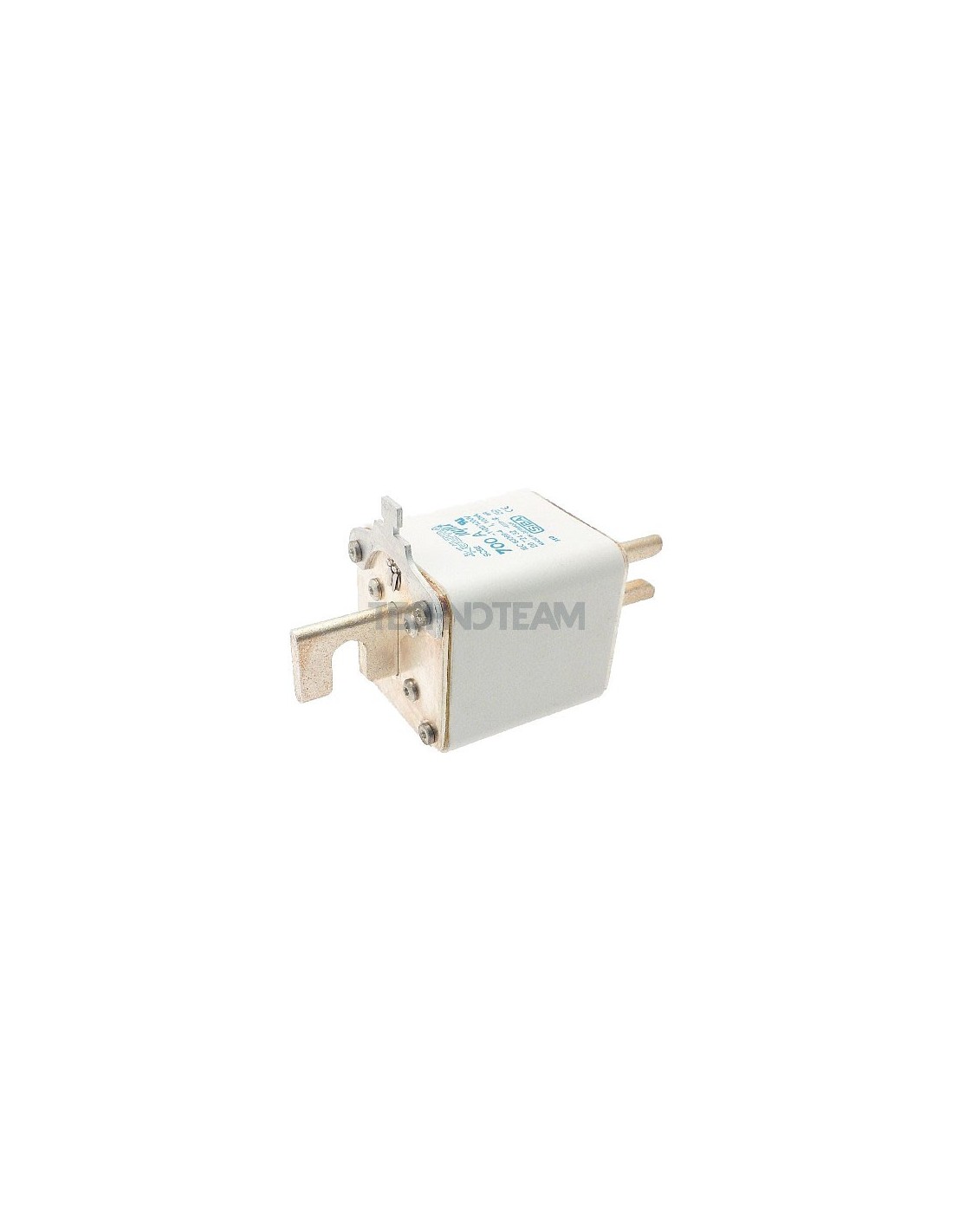

Fuse SQB2 110mm gRL/gS 690VAC/500VDC top switch adapter 250A

    Fuse SQB2 110mm gRL/gS 690VAC/500VDC top switch adapter 250A

    SIBA
    2027334.250.0
    Product available on request

    Product Request:

    Fuse SQB2 110mm gRL/gS 690VAC/500VDC top switch adapter 250A

    Fuse SQB2 110mm gRL/gS 690VAC/500VDC top switch adapter 250A

    do not include special characters

    * Required fields



    This product is only sold in boxes of 3 pcs

    This product has a minimum quantity of 3 and sold by 3

    Download

    Catalog Datasheet
    Class
    gRL/gS
    Rated current In (A)
    250
    Rated Voltage Un AC (V)
    690
    Rated break.capacity I1 AC (A)
    200000
    Voltage of total I2t test
    690
    Weight (g)
    600
    Format
    Screw fixing
    Dimension
    SQB2-110mm
    Pre-arcing I2t value (A2s)
    30000
    Total I2t value (A2s)
    190000
    Homologations
    IEC
    Power loss (W)
    30
    Rated Voltage Un DC (V)
    500
    Rated break.capacity I1 DC (A)
    32000
    Time costant L/R (ms)
    15
