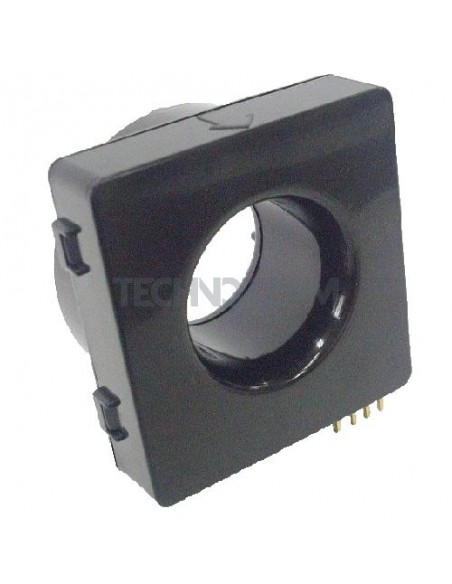

For the detection of earth fault or leakage current on PV system.
For the detection of earth fault or leakage current of transformerless PV power conditioner.
For the detection of earth fault or leakage current of storage battery.
For the detection of earth fault or leakage current of transformerless PV power conditioner.
For the detection of earth fault or leakage current of storage battery.
- Weight (g)
- 27
- Inside diameter (mm)
- 20
- Housing
- Through hole type for PCB
- Dimensions (mm)
- 42 x 56 x 17
- Operation temperature
- -20 C +80 C 85%RH without condensation
- Output
- 200mVDC
- Max capable current (A)
- 10
- Power Supply Voltage (V)
- 5
- Accuracy
- 1%
- Applicable current DC (A)
- 0,200
- Type of output connection
- Pin 3,6mm
