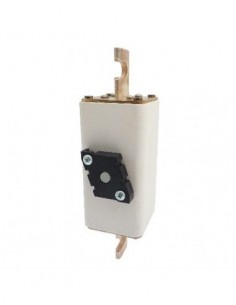

Fuse SQB-DC92 gR 900VDC knife 171mm with switch adapt 350A

    Fuse SQB-DC92 gR 900VDC knife 171mm with switch adapt 350A

    SIBA
    9032021.350.0
    Product available on request

    Product Request:

    Fuse SQB-DC92 gR 900VDC knife 171mm with switch adapt 350A

    Fuse SQB-DC92 gR 900VDC knife 171mm with switch adapt 350A

    do not include special characters

    * Required fields



    Download

    Catalog Datasheet
    Class
    gR
    Rated current In (A)
    350
    Voltage of total I2t test
    1000
    Weight (g)
    1250
    Format
    Screw fixing
    Dimension
    DC92
    Pre-arcing I2t value (A2s)
    57100
    Total I2t value (A2s)
    374000
    Homologations
    IEC
    Power loss (W)
    61
    Rated Voltage Un DC (V)
    900
    Rated break.capacity I1 DC (A)
    30000
    Time costant L/R (ms)
    10

    Alternatives

    Fuse SQB-DC92 gR 900VDC knife contacts 171mm 350A
      Available
      Ultrarapid fuses aR - gR

      Fuse SQB-DC92 gR 900VDC knife contacts 171mm 350A

      SIBA SIBA
      9032020.350.0
      Class
      gR
      Rated current In (A)
      350
      Voltage of total I2t test
      1000
      Format
      Screw fixing
      Dimension
      DC92
      Pre-arcing I2t value (A2s)
      57100
      Total I2t value (A2s)
      374000
      Homologations
      IEC
      Power loss (W)
      61
      Rated Voltage Un DC (V)
      900
      Rated break.capacity I1 DC (A)
      30000
      Time costant L/R (ms)
      10

      Product available on request

      Accessories

      Microswitch 1,3kV 1pole standard Microswitch 1,3kV 1pole standard 2
        Available
        for high Voltage fuses DC

        Microswitch 1,3kV 1pole standard

        2800310.0.0
        Rated current In (A)
        12
        Rated Voltage Un AC (V)
        250
        Fuses format
        Screw fixing
        Fuses dimension
        SQB0 SQB1 SQB2 SQB3 SQB4
        Rated Voltage Un DC (V)
        35
        Rated insultaion voltage AC (V)
        1250
        Rated insulated voltage DC (V)
        1250

        Product available on request

        Microswitch 1,25kV 2poles standard
          Available
          for high Voltage fuses DC

          Microswitch 1,25kV 2poles standard

          2800320.0.0
          Rated current In (A)
          12
          Rated Voltage Un AC (V)
          250
          Fuses format
          Screw fixing
          Fuses dimension
          SQB0 SQB1 SQB2 SQB3 SQB4
          Rated Voltage Un DC (V)
          35
          Operating voltage (V)
          True
          Rated insultaion voltage AC (V)
          1250
          Rated insulated voltage DC (V)
          1250

          Product available on request

          Microswitch 1,3kV 1pole for digital circuits (5V/1mA) Microswitch 1,3kV 1pole for digital circuits (5V/1mA) 2
            Available
            for high Voltage fuses DC

            Microswitch 1,3kV 1pole for digital circuits (5V/1mA)

            2800410.0.0
            Rated current In (A)
            12
            Rated Voltage Un AC (V)
            250
            Fuses format
            Screw fixing
            Fuses dimension
            SQB0 SQB1 SQB2 SQB3 SQB4
            Rated Voltage Un DC (V)
            35
            Rated insultaion voltage AC (V)
            1250
            Rated insulated voltage DC (V)
            1250

            Product available on request

            Microswitch 1,3kV 2poles for digital circuits (5V/1mA)
              Available
              for high Voltage fuses DC

              Microswitch 1,3kV 2poles for digital circuits (5V/1mA)

              2800420.0.0
              Rated current In (A)
              12
              Rated Voltage Un AC (V)
              250
              Fuses format
              Screw fixing
              Fuses dimension
              SQB0 SQB1 SQB2 SQB3 SQB4
              Rated Voltage Un DC (V)
              35
              Rated insultaion voltage AC (V)
              1250
              Rated insulated voltage DC (V)
              1250

              Product available on request
