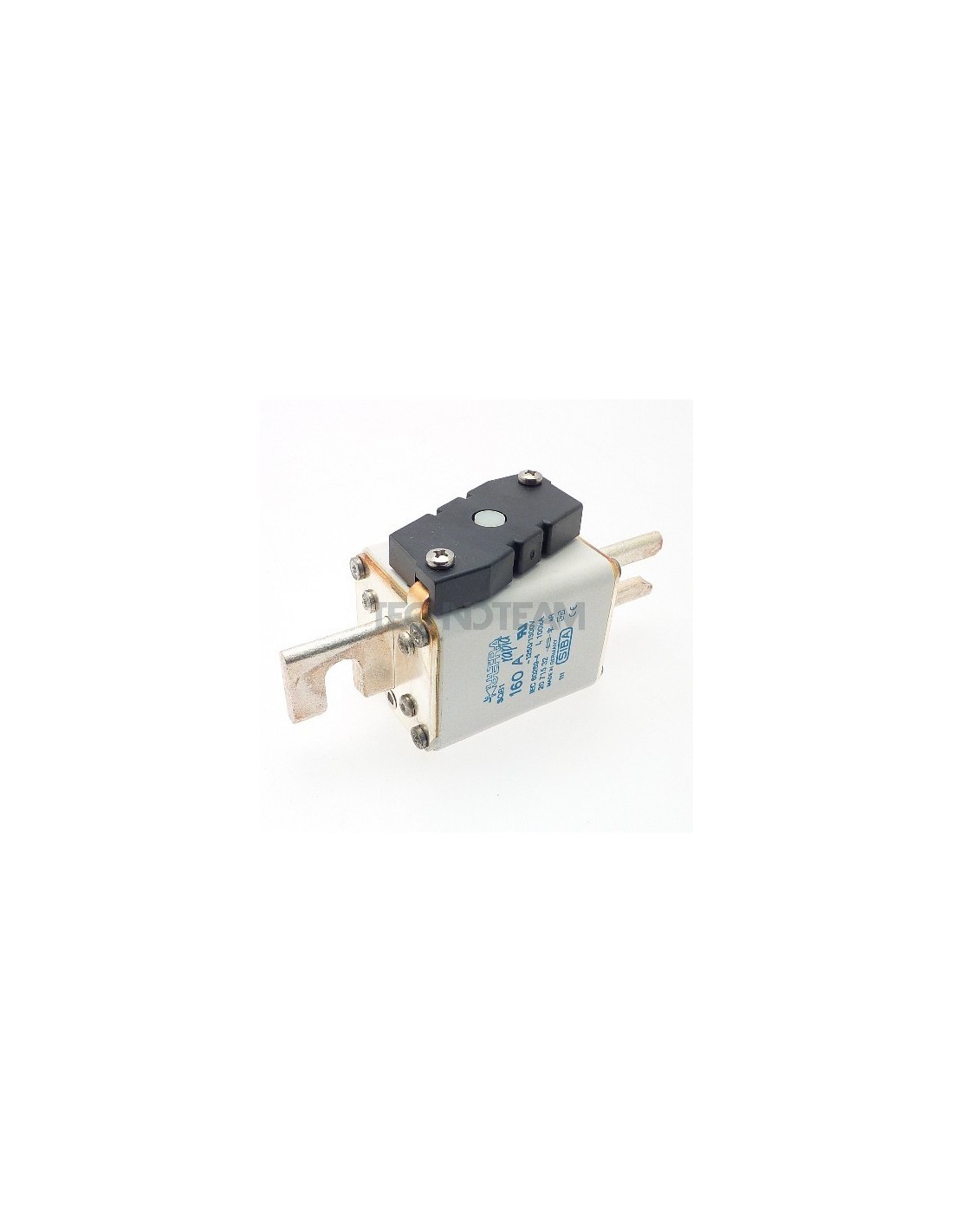

Fuse 1000VDC SQB1 110mm aR/aBat 350A switch adap.

    Fuse 1000VDC SQB1 110mm aR/aBat 350A switch adap.

    SIBA
    9054026.350.0
    Product available on request

    Product Request:

    Fuse 1000VDC SQB1 110mm aR/aBat 350A switch adap.

    Fuse 1000VDC SQB1 110mm aR/aBat 350A switch adap.

    do not include special characters

    * Required fields



    Download

    Catalog Datasheet
    Class
    aR-aBat
    Rated current In (A)
    350
    Voltage of total I2t test
    1000
    Format
    Screw fixing
    Dimension
    SQB1
    Pre-arcing I2t value (A2s)
    27000
    Total I2t value (A2s)
    130000
    Homologations
    IEC & UL
    Power loss (W)
    83
    Rated Voltage Un DC (V)
    1000
    Rated break.capacity I1 DC (A)
    200000
    Time costant L/R (ms)
    3

    Accessories

    Fuse holder for SQB fuses size1-2-3 110mm 630A 1400V
      Available
      for Bolted fuses

      Fuse holder for SQB fuses size1-2-3 110mm 630A 1400V

      2132301.0.0
      Rated current In (A)
      630
      Rated Voltage Un AC (V)
      1400
      Homologations
      IEC & UL
      Fuses format
      Screw fixing
      Fuses dimension
      SQB1 SQB2 SQB3
      Number of phase
      1
      Distance (mm)
      110
      Max power dissipation (W)
      60
      $127.57
