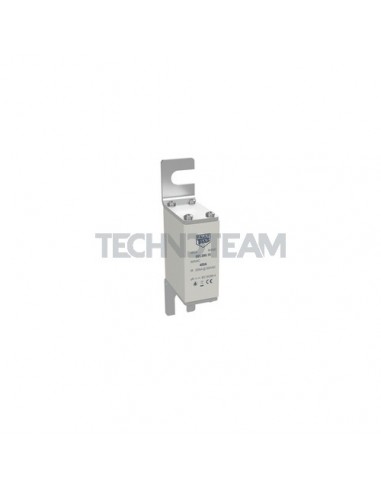

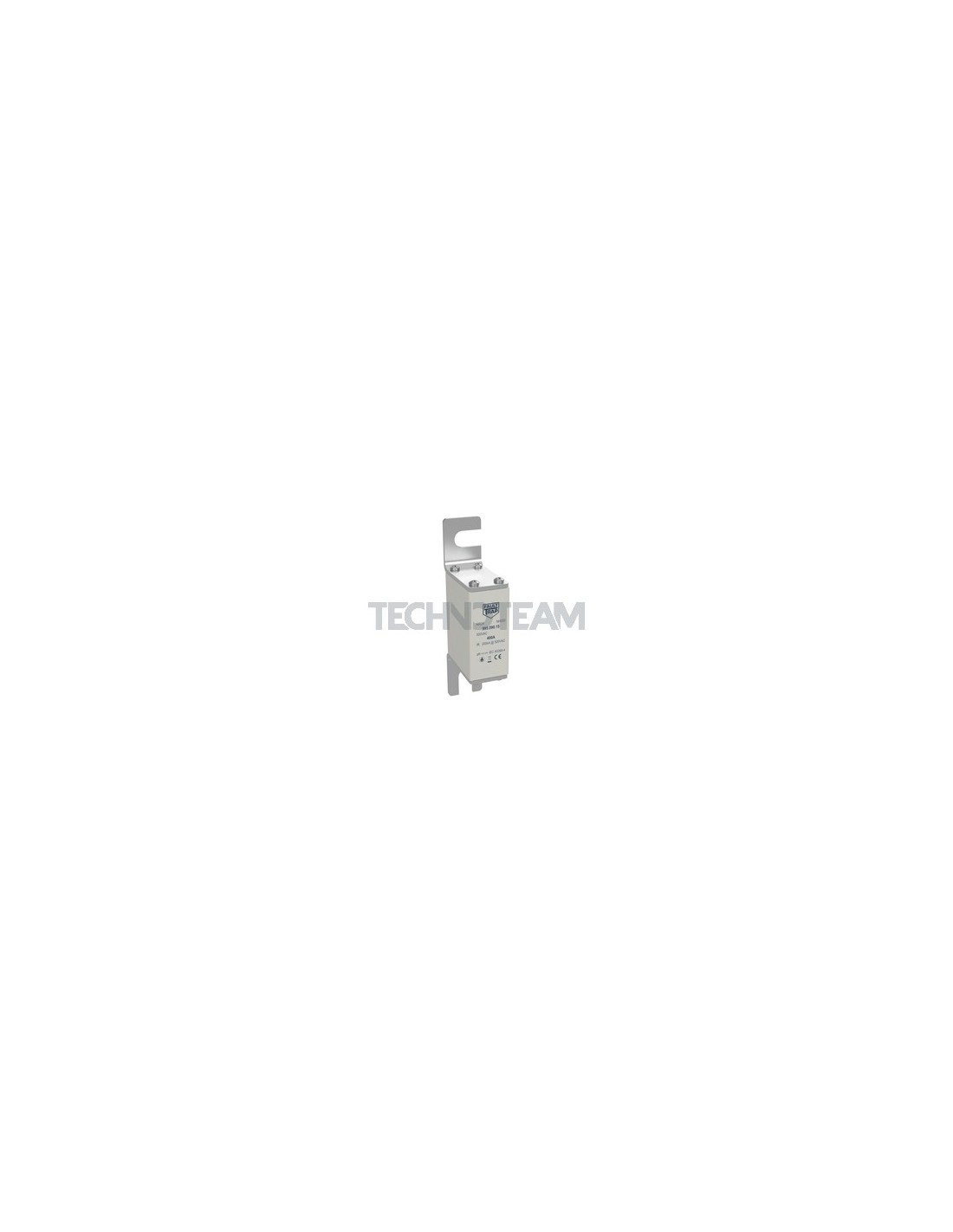

NR2B - Fuse 00/80 aR 690VAC with ind. w/o lug 350A

    NR2B - Fuse 00/80 aR 690VAC with ind. w/o lug 350A

    FAULTRAP
    564.272.99.0.0
    Product available on request

    Product Request:


    NR2B - Fuse 00/80 aR 690VAC with ind. w/o lug 350A

    NR2B - Fuse 00/80 aR 690VAC with ind. w/o lug 350A

    do not include special characters

    * Required fields



    Class
    aR
    Rated current In (A)
    350
    Rated Voltage Un AC (V)
    690
    Rated break.capacity I1 AC (A)
    200000
    Voltage of total I2t test
    690
    Format
    Screw fixing
    Dimension
    000-80mm
    Pre-arcing I2t value (A2s)
    21500
    Total I2t value (A2s)
    110000
    Homologations
    IEC & UL
    Power loss (W)
    80
    Time costant L/R (ms)
    2
